| Brand Name : | Innolux |
| Model Number : | AT070TN94 |
| Certification : | CE,ROHS |
| Price : | $10.5 |
| Payment Terms : | T/T |
| Supply Ability : | 5000pcs |
| Delivery Time : | 3-5 work days |

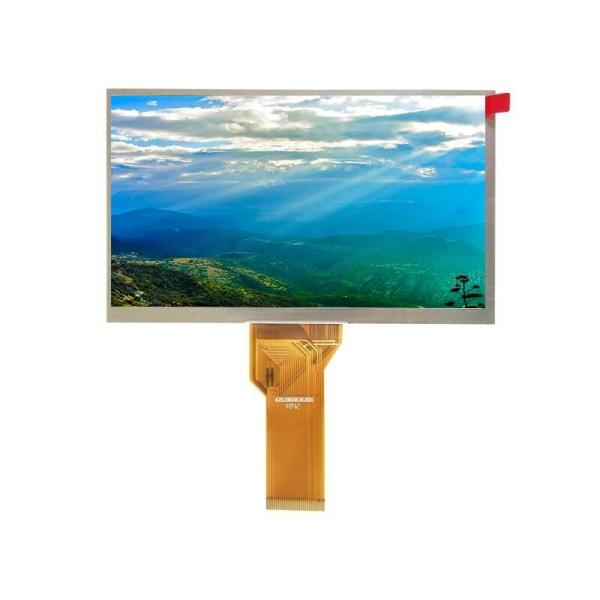

7 Inch Lcd Display RGB Interface Wide Temperature 800x480
General Description:
The AT070TN94 has a display resolution of 800 (RGB) x 480 (WVGA), an aspect ratio of 16:9 (W:H), and a vertical RGB bar arrangement of pixels. Its display area size is 154.08×85.92 (W×H) mm, viewing size is 156.7×89.1 (W×H) mm, appearance size is 164.9×100 (W×H)×6 (thick) mm, surface treatment is matte, and product net weight is 154g (Typ.).
Specifications:
| Parameter | Specification | Unit |
| Active Area | 154.08(W)×85.92(H) | mm |
| Number Of Pixels | 800(RGB)×480 | pixels |
| Luminance | 400 cd/m² (Typ.) | |
| Pixel Arrangement | Pixels RGB stripe arrangement | |
| Display Mode | Normal white display | |
| Display Colors | 16.7M | colors |
| Interface | Parallel RGB (1 ch, 6/8-bit) | |
| Contrast Ratio | 500 : 1 | |
| Viewing Angle(CR>10) | 70/70/50/70 (Typ.) | |
| Response Time | 25 (Typ.)(Tr+Tf) | ms |
| Color Gamut | 50%NTSC | |
| Outline Dimension | 164.9(W)×100(H)×6(D) | mm |
Absolute Maximum Ratings:
Item | Symbol | Values | Unit | |
| Min. | Max. | |||
| Operation Temperature | TOP | -30 | 85 | ℃ |
| Storage Temperature | TST | -30 | 85 | ℃ |
Handling Precautions:
When returning the module for repair or etc., Please pack the module not to be broken. We recommend to use the original shipping packages.
|
|
